Bionet BM7 Premium Patient Monitor

Share This Item

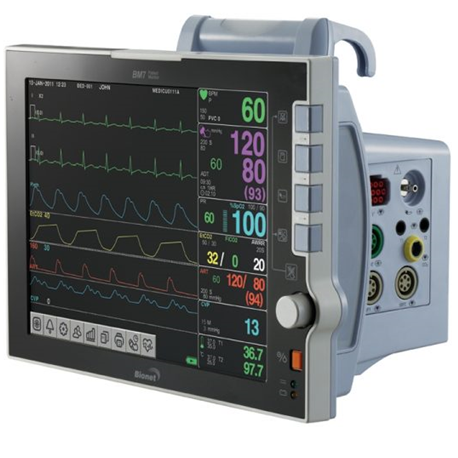

Bionet BM7 Premium Patient Monitor

The Bionet BM7 Patient Monitor is a vital signs monitor with a touch screen interface.
Individual sweep speed setting for each parameter

Multiple display modes

Superior Advantages

ECG, SpO2, NIBP, Respiration, 2IBP, 2Temperature, EtCO?

12.1 colour TFT LCD Touch screen with 6 waveforms

Individual sweep speed setting for each parameter

168 full hours trend data are stored

SpO? measurement with very low perfusion detection and pulse beep

4-split multiple display modes for diverse hospital environment Screen freeze ON/OFF OxyCRG, Drug Calculation

External VGA output for large screen (Option) Connected to BM Central monitoring system using LAN or W-LAN

Li-ion Battery with longer lifetime (1.5hrs for continuous operation / optional battery total 3hrs)

 Enhanced & extendible multi-parameter

• Mainstream/Sidestream EtCO2(Option)

• 12Ch ECG Measurement Module (BM7 CX)

• High-performance Suntech NIBP High-performance ECG detection and analysis

• Enhanced Input impedance for dry skin or electrode patch • ST level, PVC count real-time display

• 13 kinds of Arrhythmia analysis

• Pacemaker detection function

• 120 kinds of resting ECG analysis (BM7 CX) Enhanced data management

• Graphical and Tabular Trends

• 20cases * 10-sec alarm waveform is stored, reviewed and printed • USB memory storage


Box Contains:
- 5-lead patient cable,
- Reusable adult SpO2 probe + cable 2m,
- NIBP Reusable adult cuff(25-35cm) + cable 3m,
- Built-in printer
- DC adapter(18VDC, 2.5A)

Display, Resolution 12.1” color TFT, LCD, 800 x 600 pixels Dimension, Weight 322(W) x 250(H) x 224.8(D) mm, Approx. 4.5kg

Trace 6 waveforms : 2*ECG, SpO2, RR or EtCO2, 2*IBP Sweep speed : 6.25, 12.5, 25, 50 mm/sec

Indicators Categorized alarms (3 priority levels)

Visual alarm lamp handle

QRS beep & SpO2 pulse beep Percent(%)

SpO2 pitch tone Battery status,

External Power LED Touch screen, Rotary knob

Interfaces Power supply : AC 100-240V(50/60Hz)

DC input  connector : 18VDC, 2.5A

Defibrillator Sync. Output : - Signal Level : 0 to 5V

pulse - Pulse width : 100 ± 10ms

LAN digital output for transferring data

NurseCall System connection : - 0.3A at 125VAC - 1A at 24 VDC

External VGA monitor connection DC output : 5VDC, 1A Max            USB Barcode Scanner USB & SD memory data storage

Battery Rechargeable Li-ion battery, 1.5hours for continuous operation (option : Using additional battery total 3hrs)

Thermal Printer(Option) Speed : 25,50mm/sec, Paper width : 58mm

Data Storage 168hours trends, 20cases of 10sec alarm waveform Language English, French, Spanish, Italian, German, Chinese, Russian, Czech, Polish, Turkish, Romanian, Portuguese Bulgarian, Hungarian, Korean

Accessory

Standard -5-lead patient cable 1ea

Electrodes 10ea

NIBP extension hose(3m) 1ea

Reusable adult cuff(25-35cm) 1ea

SpO2 extension cable(2m) 1ea

Reusable adult SpO2 probe 1ea DC adapter(18VDC, 2.5A) with power cord 1ea

Optional-

Paper roll(2 rolls are included in printer type)

Reusable temperature probe (Surface/Rectal)

IBP transducer set (Disposable/Reusable)

Sidestream EtCO2 module (Respironics)

Mainstream EtCO2 module (Respironics)

Sidestream EtCO2 airway adapter kit Mainstream EtCO2 airway adapter kit 3-Lead patient cable 10-Lead patient cable NIBP cuff(Reusable/Disposable)

ECG

Leads Type 3-lead, 5-lead

Lead Selection 3-lead : I, II, III
                         5-lead : I, II, III, aVR, aVL, aVF, V
ECG waveforms 3-lead : 1 channel
                           5-lead : 2/7 channels
Heart Rate Range Adult : 30 to 300 bpm, Neonate/Pediatric : 30 to 350 bpm
Heart Rate Accuracy ± 1bpm or ± 1%, whichever is greater
Sweep speed 6.25, 12.5, 25, 50 mm/sec

Filter - Diagnosis : 0.05 to 150 Hz - Monitoring : 0.5 to 40 Hz
- Moderate : 0.5 to 25 Hz - Maximum : 5 to 25 Hz

S-T segment detection range -2.0 to 2.0 mV
Arrhythmia analysis ASYSTOLE, VTACH, VFIB, BIGEMINY, ACCVENT, COUPLET, IRREGULAR, PAUSE, PVC, RONT, TRIGMINY, VBRADY, SHORTRUN
Pacemaker Detection Mode Indicator on waveform display (user selectable)
Protection Against electrosurgical interference and defibrillation
Respirations

Method Thoracic impedance
Channel Selection RA-LA or RA-LL
Measurement Range 5 to 120 Breath per minute
Accuracy ± 1 breath per minute
Apnea alarm Yes
SpO2-Saturation range 0 to 100%
Saturation accuracy 70 to 100% ±2 digits, 0 to 69% unspecified
Pulse rate range 30 to 254 bpm
Pulse rate accuracy ± 2 bpm

IBP(Option)-Channels 2
Measurement range -50 to 300mmHg
Accuracy <100mmHg : ±1mmHg
>=100mmHg : ±1% of reading
Pulse rate range 0 to 300bpm
Zero balancing Range: ±200mmHg
Accuracy: ±1mmHg
Drift: ±1mmHg over 24hours
Transducer sensitivity 5μV/mmHg
Temperature-
Channels 2
Measurement range 0 to 50*C (32 to 122F)
Accuracy 25*Cto 50*C: ±0.1*C
0*C to 24*C: ±0.2*C
Compatibility YSI Series 400 temperature probes
Sidestream EtCO2 - Respironics (Option)
Measurement range 0 to 150 mmHg, 0 to 19%
Accuracy 0 to 40mmHg ±2 mmHg, 41 to 70mmHg ±5% of reading,
71 to 100mmHg ±8% of reading, 101 to 150mmHg ±10% of reading
Respiration rate 2 to 150 breath per minute
Respiration accuracy ±1 breath per minute

Mainstream EtCO2 - Respironics (Option)
Measurement range 0 to 150 mmHg, 0 to 19%
Accuracy 0 to 40mmHg ±2 mmHg, 41 to 70mmHg ±5% of reading,
71 to 100mmHg ±8% of reading, 101 to 150mmHg ±10% of reading
Respiration rate 0 to 150 breath per minute
Respiration accuracy ±1 breath per minute
NIBP-Suntech
Method Oscillometry
Operation mode Manual / Automatic / Continuous
Pressure range 0 to 300mmHg (accuracy : ±3mmHg)
Safety pressure Adult : 300 mmHg
Neonate : 150 mmHg
Measurement Range Adult Pressure : 20 to 260 mmHg
Pulse Rate : 30 to 220 BPM
Pediatric Pressure : 20 to 160 mmHg
Pulse Rate : 30 to 220 BPM
Neonate Pressure : 20 to 130 mmHg
Pulse Rate : 30 to 220 BPM
Accuracy Meets accuracy requirements of ANSI/AAMI SP10 :
1992 and 2002



Standard warranty covered by the seller against any manufacturing defect. In such events, please report to us within 7 days from the date of delivery at connect@lumiere32.sg.
