Short Description
Intra Oral X-Rays - BEST-X-DC with TIM-X (Palmtop) - With Mobile Stand
Share This Item
Intra Oral X-Rays - BEST-X-DC with TIM-X (Palmtop) - With Mobile Stand
The new Best-X-DC configuration includes the palmtop TIM – X for the control of exposure parameters.
The 0.3 mm focal spot tube allows obtaining more detailed x-ray images with any type of film, sensors and phosphor plates, reducing to a minimum the exposure time / emitted dose.

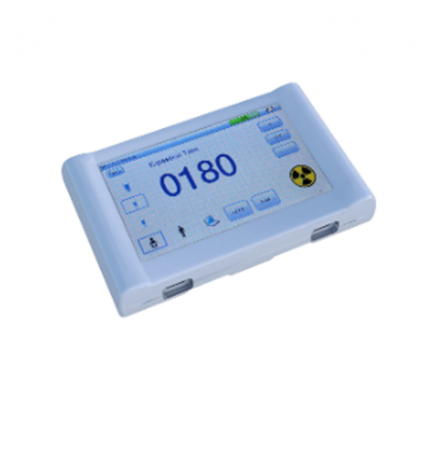

TIM-X is a state-of-the-art wireless radio-frequency palmtop which allows controlling the X-Ray Unit in total safety ensuring ease of handling.
Remote management of kilovolt [kV], milliamperes [mA], and explore time [ms], makes Best X-DC a unique device of its kind.
Exposure timing preset programs (according to R10 scale) may be customized by the end-user.
The easy manoeuvrability of the head, which is very light, enables an immediate, precise and vibration-free positioning.
| Technical data | BEST-X DC with TIM X |
| Classification | Class I Electro-medical Apparatus with type-B part appllied |
| Head | Constant potential radiographic managed by microprocessor |
| Rated electrical power | 0,800 kW |
| High frequency technology | 100 KHz |
| Focal spot | 0,3 mm - 0,4 mm (IEC 336) |
| Absorption | 6:00 am |
| Tube Toshiba | D-045 - OX/70-4 - OX/70-3 |
| Ø of long cone at the end of spacer | |
| Total filtration | 2 mm Al eq. |
| Selectable anodic current | 4-6,5 mA |
| Selectable voltage to x-ray tube | 60-70 kVp |
| Dispersed radiation | ≤ 0,25 mGy/h a 1meter from focus 1 |
| Exposure time | 20 ms – 1000 ms scala R10 |
| Intermittent operationPower supply | 230 V ± 10% |
| Intermittent operation | 1 s exposure: 30 s reset max |
| Distance | F.F. 20 cm |
| Fuse | F 6.3 AH |
| Deadman logic control | wireless |
Intra Oral X-Rays - BEST-X-DC with TIM-X (Palmtop) - With Mobile Stand
The new Best-X-DC configuration includes the palmtop TIM – X for the control of exposure parameters.
The 0.3 mm focal spot tube allows obtaining more detailed x-ray images with any type of film, sensors and phosphor plates, reducing to a minimum the exposure time / emitted dose.
TIM-X is a state-of-the-art wireless radio-frequency palmtop which allows controlling the X-Ray Unit in total safety ensuring ease of handling.
Remote management of kilovolt [kV], milliamperes [mA], and explore time [ms], makes Best X-DC a unique device of its kind.
Exposure timing preset programs (according to R10 scale) may be customized by the end-user.
The easy manoeuvrability of the head, which is very light, enables an immediate, precise and vibration-free positioning.
| Technical data | BEST-X DC with TIM X |
| Classification | Class I Electro-medical Apparatus with type-B part appllied |
| Head | Constant potential radiographic managed by microprocessor |
| Rated electrical power | 0,800 kW |
| High frequency technology | 100 KHz |
| Focal spot | 0,3 mm - 0,4 mm (IEC 336) |
| Absorption | 6:00 am |
| Tube Toshiba | D-045 - OX/70-4 - OX/70-3 |
| Ø of long cone at the end of spacer | |
| Total filtration | 2 mm Al eq. |
| Selectable anodic current | 4-6,5 mA |
| Selectable voltage to x-ray tube | 60-70 kVp |
| Dispersed radiation | ≤ 0,25 mGy/h a 1meter from focus 1 |
| Exposure time | 20 ms – 1000 ms scala R10 |
| Intermittent operationPower supply | 230 V ± 10% |
| Intermittent operation | 1 s exposure: 30 s reset max |
| Distance | F.F. 20 cm |
| Fuse | F 6.3 AH |
| Deadman logic control | wireless |
Standard warranty covered by the seller against any manufacturing defect. In such events, please report to us within 7 days from the date of delivery at connect@lumiere32.sg.
