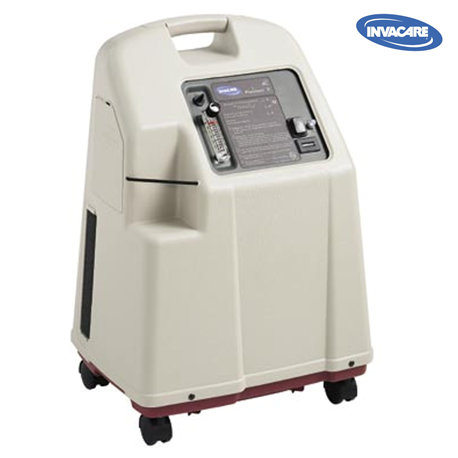

Invacare Oxygen Concentrator, 9 Litres, Per Unit #Platinum9

Share This Item

Reduce costs with the Invacare high flow oxygen concentrator.

The Invacare Platinum range of oxygen concentrators offers the best value added and reliable solution to the treatment of clients requiring long term oxygen therapy.

The latest addition to the range is the Platinum 9 high flow concentrator which is fully compatible with the Invacare HomeFill system.

Whilst optimising oxygen concentration, the Platinum 9 substantially reduces the costs associated with maintenance and delivery. This concentrator enables clients to live at home in comfort and safety where they can appreciate it‘s simplicity of operation including features such as the integrated alarms which alert any changes in equipment performance.

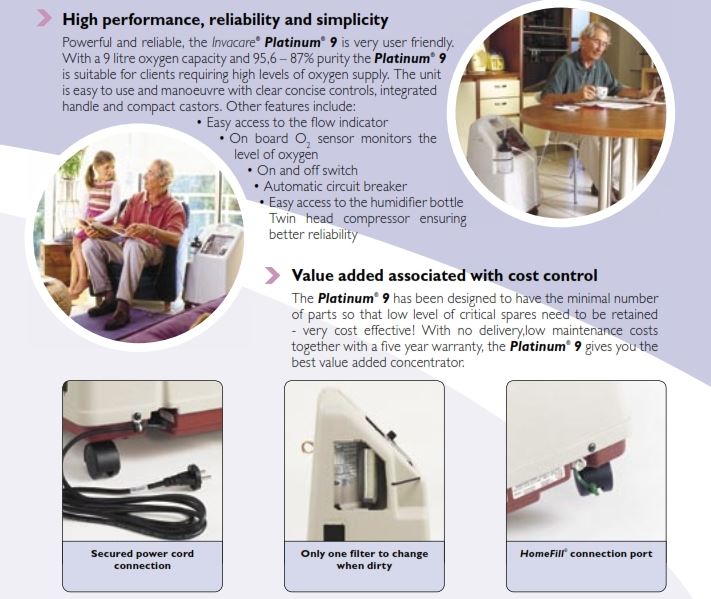

High performance, reliability and simplicity

Powerful and reliable, the Invacare Platinum 9 is very user friendly. With a 9 litre oxygen capacity and 95,6 – 87% purity the Platinum 9 is suitable for clients requiring high levels of oxygen supply. The unit is easy to use and manoeuvre with clear concise controls, integrated handle and compact castors.

Other features include:

• Easy access to the flow indicator
• On board O2 sensor monitors the level of oxygen
• On and off switch
• Automatic circuit breaker
• Easy access to the humidifier bottle

• Twin head compressor ensuring better reliability

  • Top handle
  • The quick access door (for BOTH inlet and outlet filters)
  • Low flow alarm
  • Diagnostics memory
  • Humidifier adapter storage
  • Quiet operation
  • Easy servicing
  • Service parts compatibility
  • HomeFill II compatibility (HFC)
  • Alarms and safety systems
  • Pressure-based system
  • Self-diagnostic electronics minimize troubleshooting time
  • One-piece hood for durability
  • Simplified PM schedule
  • Superior life cycle costs



Oxygen Flow 9 LPM
Flow Range 1 – 9 LPM
Maximum Outlet Pressure  5 +/- 0.5 psi.
Pressure Relief Mechanism 35 psi +/- 3.5 psi
Oxygen Concentration 2.7 l/min ; 95.6 – 93%
8 l/min ; 95.6 – 91%
9 l/min ; 95.6 – 87%
Filter  Cabinet Compressor Inlet Outlet HEPA
Electrical Requirement 230 V, 50-60 Hz
Rated Current Input  4.0 A
Average Power Consumption 475W
Sound Level < 50 db(a)
Oxygen Outlet Pressure 62 kPa
Oxygen Outlet Temperature +2.2 / ambient temperature
Battery No
Low Oxygen Flow Sound Alarm < 1 l/min
Concentration Alarms > 85% Green light
> 73% Yellow light
< 73% Red light and sound
Self-Diagnostic System Failure Code
Dimension (DxWxH) 36.5 x 46.7 x 67cm
Weight 24kg (52.9 lbs)
Shipping Weight 26kg (58 lbs)
Limited warranty 3 years no hour limit on the compressor
