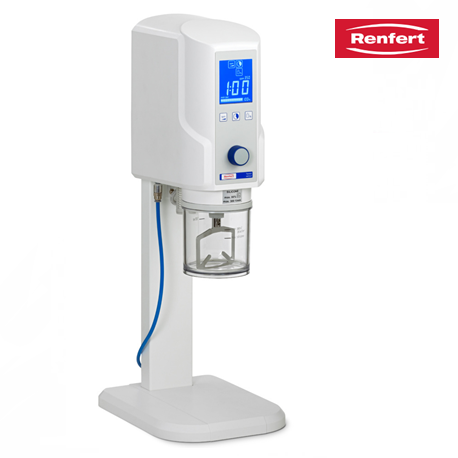

Renfert Vacuum Mixing Unit Twister venturi by Renfert

Article number

18270000

18271000

Permissible mains voltage

100–240 V

100–240 V

Permissible mains frequency

50/60 Hz

50/60 Hz

Power consumption

180 W

180 W

Min./ max. connection pressure external

5–6.5 bar
72.5–94.3 psi

5–6.5 bar
72.5–94.3 psi

Max. vacuum

≈-890 mbar
≈-12.9 psi

≈-890 mbar
≈-12.9 psi

Bowl pressure abs.

≈80 mbar
≈1.16 psi

≈80 mbar
≈1.16 psi

Vacuum reduction

80 % | 100 %

80 % | 100 %

Air consumption

46 l/min
1.62 cfm

46 l/min
1.62 cfm

Rotational speed

100–450 rpm

100–450 rpm

Dimensions (W x H x D) (wall unit)

152 x 320 x 235 mm
6.0 x 12.6 x 9.3"

152 x 320 x 235 mm
6.0 x 12.6 x 9.3"

Dimensions (W x H x D) (with stand)

230 x 640 x 295 mm
9.0 x 25.2 x 11.6"

230 x 640 x 295 mm
9.0 x 25.2 x 11.6"

Weight (without bowl)

~4 kg
~8.8 lbs

~4 kg
~8.8 lbs
