Short Description

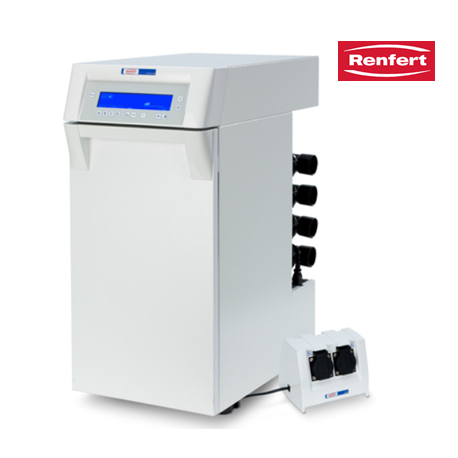

Silent V4 230V

Share This Item


  • Safe production process due to low-maintenance EC motor technology (> 5,000 operating hours).
  • Virtually consistent suction performance due to innovative pneumatic filter cleaning.
  • Low operating noise of max. 62.5 dB(A).


  • Suction power as required using four independently controlled pinch valves.
  • Intuitive and centralized operability via LCD display and optional remote control.
  • Central connection of all consumers thanks to the Quattro Control Box.


SILENT V4, 230 V

Article number


Permissible mains voltage

220–240 V

Permissible mains frequency

50/60 Hz

Nominal voltage

230 V

Suction turbine power

1400 W (230 V)

Volume flow (max.)

4000 l/min (230 V)
2.35 ft³/s (230 V)

Max. depression

110 hPa
1.6 psi

Motor technology


Filter technology

Bag- free

Filter quality

Class M according to EN 60335-2-69

Max. permitted connected load of the plug-in socket

2300 W (230 V)

Min./ max. connection pressure external

4.5–8 bar
65–116 psi

Mains input fuse

2 x 10 A(T)

Number of suction hoses


Sound pressure level (LpA) (at max. volume flow)

62,5 dB(A)

Weight (empty)

~45 kg
~99.36 lbs

Dimensions (W x H x D)

350 x 750 x 590 mm
13.78 x 29.53 x 23.23"

Ø suction fittings interior

38 mm
1.5 "

Ø suction fittings exterior

45 mm
1.77 "

Fill level dust drawer

~12 l
~3.17 gal

Standard warranty covered by the seller against any manufacturing defect. In such events, please report to us within 7 days from the date of delivery at connect@lumiere32.sg.
