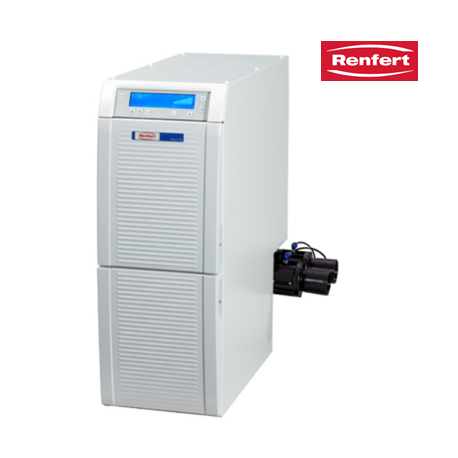

Renfert SILENT TS2 Extraction units by Renfert

Article number

29300050

29301050

Permissible mains voltage

220–240 V

120 V

Permissible mains frequency

50/60 Hz

60 Hz

Nominal voltage

230 V

120 V

Suction turbine power

1400 W (230 V)

1400 W (120 V)

Volume flow (max.)

3300 l/min (230 V)
1.94 ft³/s (230 V)

3300 l/min (120 V)
1.94 ft³/s (120 V)

Max. depression

200 hPa
2.9 psi

200 hPa
2.9 psi

Motor technology

Collector

Collector

Filter technology

Filter bag

Filter bag

Filter surface fine filter, approx.

0,8 cm²
1240 in²

0,8 cm²
1240 in²

Filter quality

Class M according to EN 60335-2-69

Class M according to EN 60335-2-69

Max. permitted connected load of the plug-in socket

2000 W (230 V)

360 W (120 V)

Min./ max. connection pressure external

4.5–8 bar
65–116 psi

4.5–8 bar
65–116 psi

Total connected power

3400 W (230 V)

1800 W (120 V)

Mains input fuse

2 x 15 A(T)

2 x 15 A(T)

Number of suction hoses

2

2

Sound pressure level (LpA) (at max. volume flow)

56,9 dB(A)

56,9 dB(A)

Weight (empty)

~27 kg
~59.5 lbs

~27 kg
~59.5 lbs

Dimensions (W x H x D)

224 x 591 x 584 mm
8.8 x 23.3 x 23.0"

224 x 591 x 584 mm
8.8 x 23.3 x 23.0"

Ø suction fittings interior

45 mm
1.77 "

45 mm
1.77 "

Ø suction fittings exterior

50 mm
1.97 "

50 mm
1.97 "

Fill level dust drawer

7,5 l
2 gal

7,5 l
2 gal
