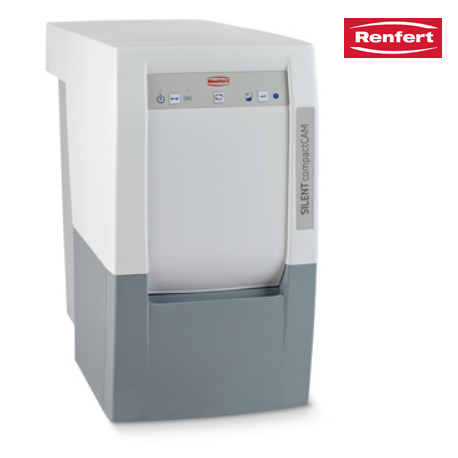

Renfert SILENT compactCAM Extraction units by Renfert

Article number

29342000

29342500

29343000

29343500

Permissible mains voltage

230–240 V

220 V

120 V

100 V

Nominal voltage

230 V

220 V

120 V

100 V

Suction turbine power

490 W (230 V)

460 W (220 V)

480 W (120 V)

480 W (100 V)

Volume flow (max.)

2500 l/min (230 V)
1.47 ft³/s (230 V)

2500 l/min (220 V)
1.47 ft³/s (220 V)

2500 l/min (120 V)
1.47 ft³/s (120 V)

2500 l/min (100 V)
1.47 ft³/s (100 V)

Max. depression

219 hPa
3.2 psi

219 hPa
3.2 psi

219 hPa
3.2 psi

219 hPa
3.2 psi

Motor technology

Collector

Collector

Collector

Collector

Filter technology

Bag- free

Bag- free

Bag- free

Bag- free

Filter quality

Class M according to EN 60335-2-69

Class M according to EN 60335-2-69

Class M according to EN 60335-2-69

Class M according to EN 60335-2-69

CAM interface

RJ 45 socket

RJ 45 socket

RJ 45 socket

RJ 45 socket

PLC: Input signal

2 x turbine on/off

2 x turbine on/off

2 x turbine on/off

2 x turbine on/off

PLC: Output signal

2 x status information

2 x status information

2 x status information

2 x status information

Mains input fuse

8 A

8 A

8 A

8 A

Number of suction hoses

1

1

1

1

Sound pressure level (LpA) (at max. volume flow)

56,9 dB(A)

56,9 dB(A)

56,9 dB(A)

56,9 dB(A)

Weight (empty)

~13,2 kg
~29.1 lbs

~13,2 kg
~29.1 lbs

~13,2 kg
~29.1 lbs

~13,2 kg
~29.1 lbs

Dimensions (W x H x D)

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

245 x 440 x 500 mm
9.6 x 17.3 x 19.7"

Ø suction fittings interior

35 mm
1.38 "

35 mm
1.38 "

35 mm
1.38 "

35 mm
1.38 "

Ø suction fittings exterior

40 mm
1.57 "

40 mm
1.57 "

40 mm
1.57 "

40 mm
1.57 "

Fill level dust drawer

~2,6 l
~0.69 gal

~2,6 l
~0.69 gal

~2,6 l
~0.69 gal

~2,6 l
~0.69 gal
