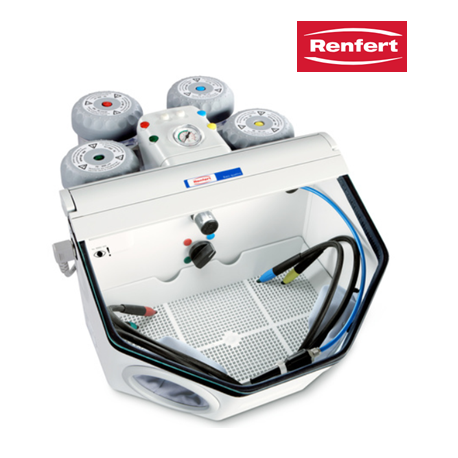

Basic quattro 25-70?/70-250? 220-240 V~, 50/60 Hz
Advantages
Details
Name |
Basic quattro, 25-70µm/70-250µm, 220-240 V |
Basic quattro, 25-70µm/70-250µm, 100-120 V |
---|---|---|
Article number |
29580000 |
29581000 |
Permissible mains voltage |
220–240 V |
100–120 V |
Permissible mains frequency |
50/60 Hz |
50/60 Hz |
Working pressure |
1–6 bar |
1–6 bar |
Max. connection pressure |
6–8 bar |
6–8 bar |
Air consumption |
98 l/min (6 bar) |
98 l/min (6 bar) |
Intensity of lighting |
4800 lux |
4800 lux |
Lamp power |
16 W |
16 W |
Dimensions (W x H x D) (1-2 tank version) |
395 x 285 x 460 mm |
395 x 285 x 460 mm |
Dimensions (W x H x D) (3-4 tank version) |
395 x 285 x 560 mm |
395 x 285 x 560 mm |
Tank capacity |
1000 ml |
1000 ml |
Number of tanks |
2–4 |
2–4 |
Blasting chamber volume |
20 l |
20 l |
Weight (empty, 2-tanks) |
~8,9 kg |
~8,9 kg |
