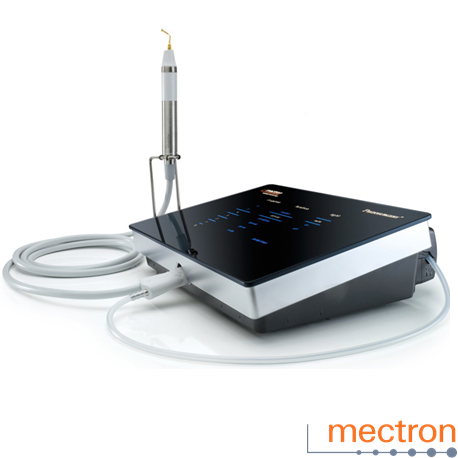

Mectron Piezosurgery® Touch - Basic1

Share This Item

CLINICAL ADVANTAGES

When it comes to cutting bone, you can of course use traditional burs and saws. They do cut bone, too – but they do not differentiate: any soft tissue getting in their way will also be cut.

The special ultrasonic micro vibrations of the original PIEZOSURGERY® technique cut bone – and nothing else.

No soft tissue is damaged, which allows you to work with a precision that facilitates not only surgery itself, but reduces postoperative discomfort for your patients at the same time.

Micrometric cuts

PIEZOSURGERY ® provides micrometric cuts for minimally invasive surgeries with maximum surgical precision and intra-operative tactile sensation.

Selective cuts

Selective cuts protects any kind of soft tissue. Nerves, vessels and membranes will not be injured while cutting bone. Thus PIEZOSURGERY® offers maximum safety for surgeons and patients.

Cavitation effect

PIEZOSURGERY® offers maximum intra-operative visibility. The cavitation effect of the ultrasonic movements lead to a blood-free surgical site.

TECHNICAL ADVANTAGES

touch screen of PIEZOSURGERY® touch

touch screen

  • exclusive glass touch screen
  • easy to clean
  • irrigation and power rate chosen by the touch of a finger

sterile protection foil of PIEZOSURGERY® touch

sterile protection foils

The exclusive glass display of the PIEZOSURGERY® touch can be protected with a dedicated, individually packed, sterile transparent foil. Thanks to these invisible shields, no dirt, scratches or fingerprints will affect your glass keyboard.

FLEXIBLE HANDPIECE POSITION

  • easy to adopt handpiece holder
  • 4 positions
  • sterilizable

flexible handpiece positions of PIEZOSURGERY touch handpiece holder

swivel type LED handpiece of PIEZOSUREGRY touch

handpiece with LED

  • swivel-type LED-light can be directed to the insert tip
  • choice between automatic, and permanent light or switched off

all-in-one handpiece system of PIEZOSURGERY touch

Unique handpiece system

  • sterilizable, all-in-one LED-handpiece and handpiece cord system
  • sterilizable, internal irrigation line, no disposables needed
  • new handpiece cord coupling protected against mishandling

FLEXIBLE IRRIGATION SYSTEM

  • the irrigation system works with cost-effective standard parts
  • tube of peristaltic pump is reusable
  • standard connections for tubing
  • liquid line integrated in handpiece cord

peristaltic pump of PIEZOSURGERY touch

electronics of PIEZOSURGERY® touch

feedback system

  • constant and optimal tuning of insert movement
  • automatically detects if more or less power is necessary and adjusts it accordingly
  • user intervention is simplified to the push of the foot pedal

working efficiency

Providing the optimal ratio between power and security is one of the key success factors of every surgery. Thanks to its intelligent electronic feedback system the original mectron PIEZOSURGERY® technology provides the maximum of power and achieves perfect cutting efficacy in every situation – for surgeries which are time-efficient, secure and successful.

RELATED TREATMENTS

  • sinus lift technique – crestal approach
  • sinus lift technique – lateral approach
  • implant site preparation
  • mini dental implant site preparation
  • extractions
  • explantation
  • ridge expansion
  • corticotomy techniques
  • bone block grafting
  • bone chip grafting
  • bone modeling
  • endodontics
  • osteotomy close to nerves
  • periodontal surgery
  • implant cleaning

patient's benefit

  • soft tissue will be protected, f.e. in lateral sinus lift surgery the risk of perforation is reduced over 80%
  • less swelling after surgery with PIEZOSURGERY®
  • faster and better osseointegration after implant site preparation with PIEZOSURGERY®
  • faster and less traumatic post-operative recovery

TECHNICAL SPECIFICATIONS

Device compliant to Dir. 93/42/CEE:  Class II a
Classification as per EN 60601-1:  I
Applied part type B (handpiece, insert)
IP 20 (device)
IP X8 (foot pedal)
Device for intermittent operation:  60sec. ON - 30sec. OFF with irrigation
30sec. ON - 120sec. OFF without irrigation (ENDO,PERIO)
Power supply voltage:  100-240 Vac 50/60 Hz
Max. power absorbed: 120 VA
Fuses:  Type 5 x 20 mm T 2AL, 250V
Operating frequency: Automatic scan
From 24 KHz to 36 KHz
Power types: ENDO
PERIO
SPECIAL
CANCELLOUS
CORTICAL
IMPLANT
Peristaltic pump capacity: Adjustable on the touch screen:
ENDO / PERIO - 7 flow levels: from 0 to 6
(from 0 to approximately 75ml/min)
SPECIAL / CANCELLOUS / CORTICAL / IMPLANT
6 capacity levels: from 1 to 6
(from 8 to approximately 75ml/min)
LED system of the handpiece: Light function on AUTO: LED system of the handpieces
witches on as soon as the device starts to operate
and switches off 3 seconds after the foot pedal is released
Light function on ON: The LED of the handpiece is
always on; after 100 seconds of foot pedal disuse it
switches off by itself and the light function moves into
position AUTO
Light Function on OFF: The LED of the handpiece is
always off.
Protections of the APC circuit: No handpiece detected
Cord interruption
Insert not tightened correctly or broken
Operating conditions: from +10°C to +40°C
Relative humidity from 30% to 75%
Pressure of air P: 800hPa/1060hPa
Transport and storage conditions:  from -10°C to +70°C
Relative humidity from 10% to 90%
Pressure of air P: 500hPa/1060hPa
Peristaltic pump tube: It is advisable not to exceed 8 sterilization cycles
Weight 3,2 Kg
Size (L -W - H) 300 x 250 x 95 mm
Warranty device 2 years; handpiece and handpiece cord 1 year

Standard warranty covered by the seller against any manufacturing defect. In such events, please report to us within 7 days from the date of delivery at connect@lumiere32.sg.
