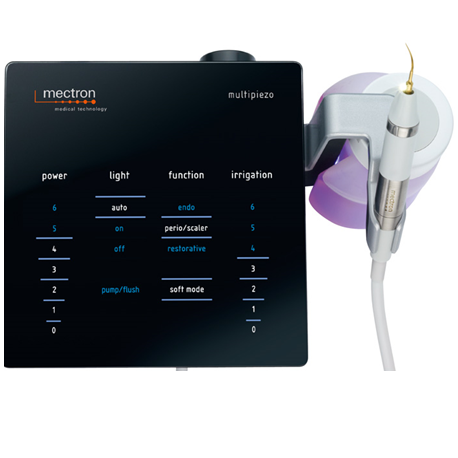

Mectron MultiPiezo Touch - Perio Unit

Share This Item

The ergonomic touch panel of the new multi piezo lets the user control all functions fast and intuitive. Due to its smooth touch surface, it can be cleaned and disinfected easily.

Thanks to its innovative soft mode the multi piezo also sets new standards in insert control and patient pain management.

  • multi piezo
    1 LED ultrasonic handpieces
  • 3 inserts: scaling inserts S1 and S6, period insert P10
    2 bottles, 500 ml
    2 safety bottle caps
  • 1 torque wrench K6

graph soft mode

SOFT MODE FOR GENTLE ULTRASOUND

Whenever needed, mectron’s innovative software switches the modulation of the ultrasound into its unique SOFT MODE and thus creates a gentle but still powerful insert movement.

The result: treatment efforts are met perfectly – sensitive patients treated with maximum comfort.

TECHNICAL SPECIFICATIONS

Device compliant to Dir. 93/42/CEE:  Class II a
Classification as per EN 60601-1:  I
Applied part type B (handpiece, insert)
IP 20 (device)
IP 22 (foot pedal)
Device for intermittent operation:  55 sec. ON - 30 sec. OFF with irrigation
30 sec. ON - 120 sec. OFF without irrigation
Power supply voltage:  100-240 Vac 50/60 Hz
Max. power absorbed: 90 VA
Fuses:  Type 5 x 20 mm T 2AL, 250V
Operating frequency: Automatic scan
From 24 KHz to 36 KHz
Power types: ENDO
PERIO
SCALER
SOFT MODE
Peristaltic pump capacity: Adjustable on the touch screen:
7 flow levels
from 0 (0 ml/min) to 6 (28 ml/min)
LED system of the handpiece: Light function on AUTO: LED system of the handpieces witches on as soon as the device starts to operate  and switches off 3 seconds after the foot pedal is released
Light function on ON: The LED of the handpiece is always on; after 100 seconds of foot pedal disuse it switches off by itself and the light function moves into position AUTO
Light Function on OFF: The LED of the handpiece is always off.
Protections of the APC circuit: No handpiece detected
Cord interruption
Insert not tightened correctly or broken
Operating conditions: from +10°C to +35°C
Relative humidity from 30% to 75%
Pressure of air P: 800hPa/1060hPa
Transport and storage conditions:  from -10°C to +70°C
Relative humidity from 10% to 90%
Pressure of air P: 500hPa/1060hPa
Weight 2,4 Kg
Size (L -W - H) 320 x 230 x 145 mm
Warranty device 2 years; handpiece and handpiece cord 1 year



AS FLEXIBLE AS IT GETS: THE IRRIGATION SYSTEM OF THE NEW MULTIPIEZO

multipiezo bottle connection

IRRIGATION SYSTEM

  • no dripping and no leaking
  • illuminated 500 ml bottle
  • optional connection to fixed water line

multipiezo with connected bottle

RINSING WITH MEDICINAL SOLUTIONS

  • use medicinal solutions (f.e. H2O2, chlorhexidine)
  • also very aggressive solutions like sodium hypochlorite for endodontic treatment
  • liquid lines are cleaned by simply activating the flush function

TECHNICAL ADVANTAGES

multipiezo - touch screen

TOUCH SCREEN

  • exclusive glass touch screen black or white
  • easy to clean
  • irrigation and power rate chosen by the touch of a finger

multipiezo - LED handpiece

LED HANDPIECE

  • LED handpiece with new swivel-type light focus
  • light beam always on the insert tip, regardless of the insert shape
  • handpiece holder with security switch

RELATED TREATMENTS

  • prophylaxis - supragingival scaling
  • periodontics - subgingival scaling
  • peri-implantitis - implant cleaning
  • endodontics - cleaning of root channels
  • endodontics - revision of root channels
  • endodontics - retrograde
  • restorative - preparation of cavities
  • restorative - preparation of pits and fissures
  • restorative - finishing of prosthetic preparations
  • restorative - removal of old restorations
  • restorative - removal of the excess restoration
  • orthodontics - scaling
  • extraction

Standard warranty covered by the seller against any manufacturing defect. In such events, please report to us within 7 days from the date of delivery at connect@lumiere32.sg.
