Short Description

Mectron Compact Piezo P2K For Dental Surgery

Share This Item

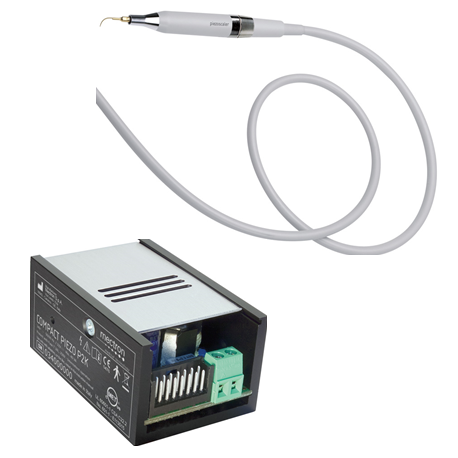

Mectron Compact Piezo P2K For Dental Surgery

the built-in version

The compact piezo P2K is the ideal variant for the dental unit in a surgery where there is little room to spare.

The controls are built into the unit and the handpiece is housed in the handpiece holder of the dental unit – compact size plus excellent performance.

compact piezo P2K

  • 1 electronic module
  • 1 ultrasonic handpiece
  • 1 basic kit equipped with: scaling inserts S1, S2, S3 and 1 high-efficiency scaling insert S6
  • 1 torque wrench K6

RELATED TREATMENTS

  • prophylaxis - supragingival scaling
  • periodontics - subgingival scaling
  • perimplantitis - implant cleaning
  • endodontics - cleaning of root channels
  • endodontics - revision of root channels
  • endodontics - retrograde
  • restorative - preparation of cavities
  • restorative - preparation of pits and fissures
  • restorative - finishing of prosthetic preparations
  • restorative - removal of old restorations
  • restorative - removal of excess restoration
  • orthodontics - scaling



TECHNICAL SPECIFICATIONS

Device compliant to Dir. 93/42/CEE:  Class II a
Classification as per EN 60601-1:

II
Applied part type BF (handpiece, insert)
IP According to the dental chair manufacturer

Device for intermittent operation:  60 sec. ON - 30 sec. OFF with irrigation
30 sec. ON - 120 sec. OFF without irrigation
Power supply voltage:  Power supply compliant to IEC/EN 60601-1:
24 Vac 50/60 Hz
or 32 Vdc
Max. power absorbed: 40 VA
Fuses:  T 2 AL 250V (not included)
Output control electrovalve 24 Vdc   2,5 W max.
Operating frequency: Automatic scan
From 24 KHz to 36 KHz
Power types: Adjustable according to the instructions given by the dental chair manufacturer.
Water supply: Adjustable according to the instructions given by the dental chair manufacturer.
Working pressure from 1 to 6 bar
Protections of the APC circuit:

No handpiece detected
Cord interruption
Insert not tightened correctly or broken
Protection by discharge to earth

Operating conditions: from +10°C to +40°C
Relative humidity from 30% to 75%
Pressure of air P: 800hPa/1060hPa
Transport and storage conditions:  from -10°C to +70°C
Relative humidity from 10% to 90%
Pressure of air P: 500hPa/1060hPa
Warranty device 2 years; handpiece and handpiece cord 1 year

Feedback-System icon

FEEDBACK-SYSTEM

The built-in Feedback-System monitors performance and adjusts it when needed within only a few hundredths of a second. This means that, whatever the field of use, you can always depend on constant optimum performance for the current indication. A definite advantage in terms of efficiency and comfort of treatment.

Automatic protection control logo

APC - AUTOMATIC PROTECTION CONTROL

The APC ensures maximum safety. It recognizes deviations from the normal functioning of the compact piezo automatically and stops both the ultrasound and the flow of liquid within less than 0,1 seconds.

piezo smart handpiece

HANDPIECE

  • made of titanium and Radel® (a high-tech plastic material)
  • resistant to medicinal solutions
  • sterilizable at 134°C
  • universal, for use with all mectron ultrasound inserts
  • top-quality plug-in contacts
  • error-protection to prevent incorrect connection

Standard warranty covered by the seller against any manufacturing defect. In such events, please report to us within 7 days from the date of delivery at connect@lumiere32.sg.
